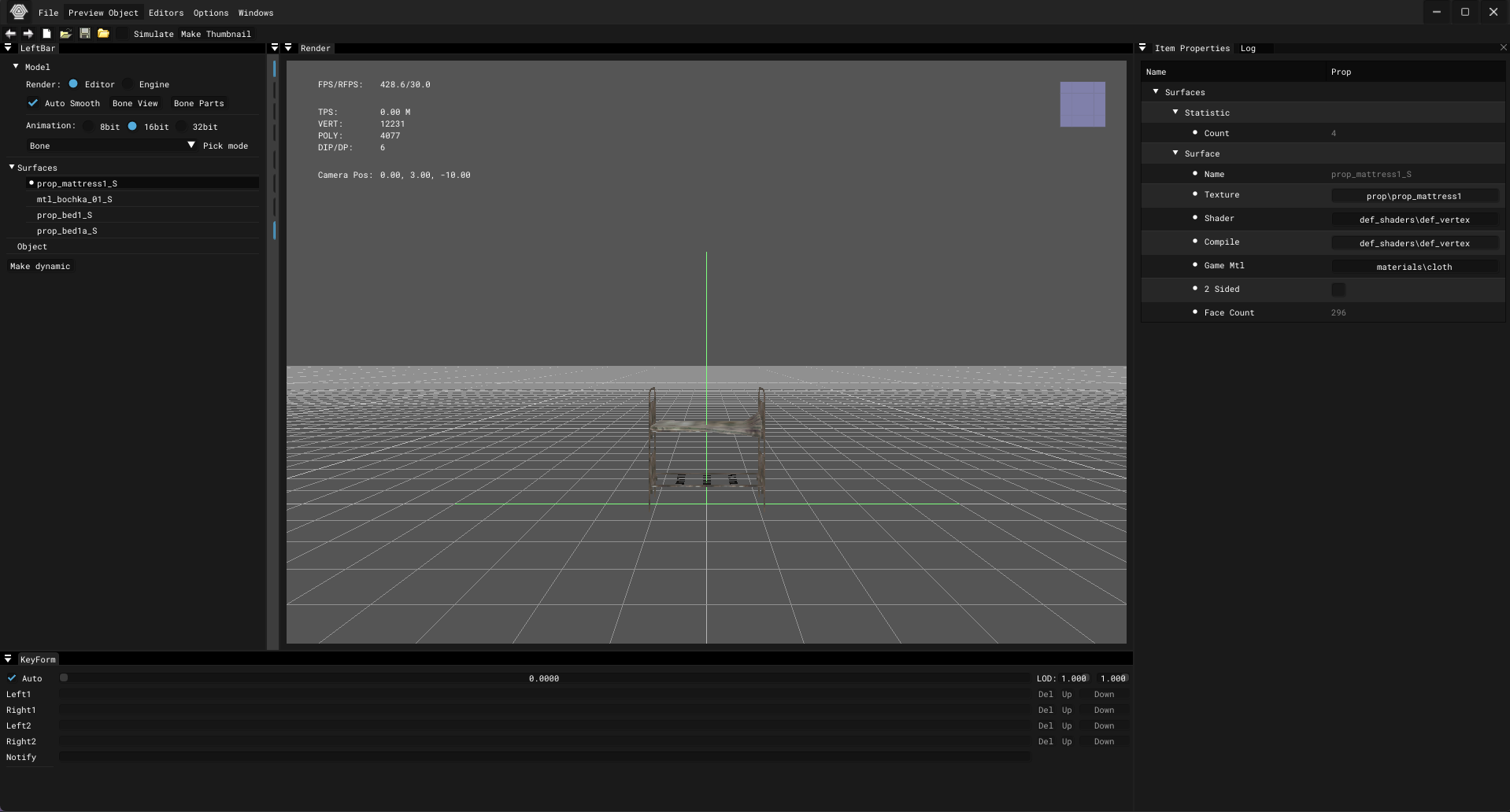

Actor Editor

---

About

The Actor editor is usually needed to customize objects (NPCs, Objects, etc.)

Interface

File

Button	Description	Note
Clear	Clear scene	-
Load	Load an object into a new scene	-
Save	Save object	-
Save as...	Save the object as	*.object *.lwo
Open Recent	Open recent	-
Import...	Imports the model into the scene	-
Optimize Motions	Goes through all the bones in the animation and optimizes their animation channels (e.g., position, rotation, scale) by removing  & nbsp; redundant keyframes	-
Batch Convert...	Batch file converting [Not Working]	-
Export	Export the model to formats	*.ogf *.omf *.obj *.dm C++
Quit	Exiting the program	-

Preview Object

Button	Description
Custom...	Custom object preview
Clear	Clear thumbnail
Preference	Editors preference

Editor

Option	1	Description
Image	Image Editor	Open Image Editor
	Synchronize Textures	The function updates textures in the project by checking changes in the file system and synchronizing them
	Check New Textures	Searches for new textures in the file system and imports them
Sounds	Sound Editor	Open Sound Editor
	Synchronize Sounds (Soft)	Searches for new sounds in the file system and imports them. Deletes only those sounds that do not exist in the file system and are not used
	Synchronize Sounds (Hard)	Searches for new sounds in the file system and imports them. Deletes all sounds missing from the file system without checking if they are used
Light Anim Editor	-	Open Light Animation Editor
Minimap Editor	-	Open Minimap Editor

Options

Options	1	Description	1	Description
Render	Quality	Render quality in percent	-	-
	Fill Mode	Fill Mode	Point	Vertex point fill mode
			Wireframe	Wireframe fill mode
			Solid	Solid fill mode
	Shader Mode	Shader Mode	Flat	Flat Shading
			Gouraud	Gouraud Shading
	Edged Faces	Enables drawing of edges (wireframe) of a 3D mesh	-	-
	RenderHW	Enables GPU rendering	-	-
	Filter Linear	Enables linear texture filtering	-	-
	Textures	Enables texture display (TODO Not Working)	-	-
Draw Safe Rect			-	-
Draw Grid	Draw viewport grid	-	-	-
Coordinate Axes	None	None	-	-
	Axis		-	-
	Cube		-	-
Fog	-		-	-
Mute Sounds	-	Mute Sounds	-	-
Real Time	-	Real Time	-	-
Stats	-	Displaying statistics	-	-
Preferences	-	Open Preference window	-	-

Windows

Button	Description
Log	Open Log window
Post Process	Open Postprocess Editor
Theme	Editor theme

Top Bar

Icon	Name	Description
	Undo	Undo the last action
	Redo	Repeat the last action
	New	Clear/New Scene
	Open	Open file
	Save	Save file
	Open Gamedata	Open "gamedata" folder
	Simulate	Activates physics simulation
	Make Thumbnail	Make thumbnail
