Particle Editor
About
Used to create particle effects (*.pe ) or particle groups (*.pg ).

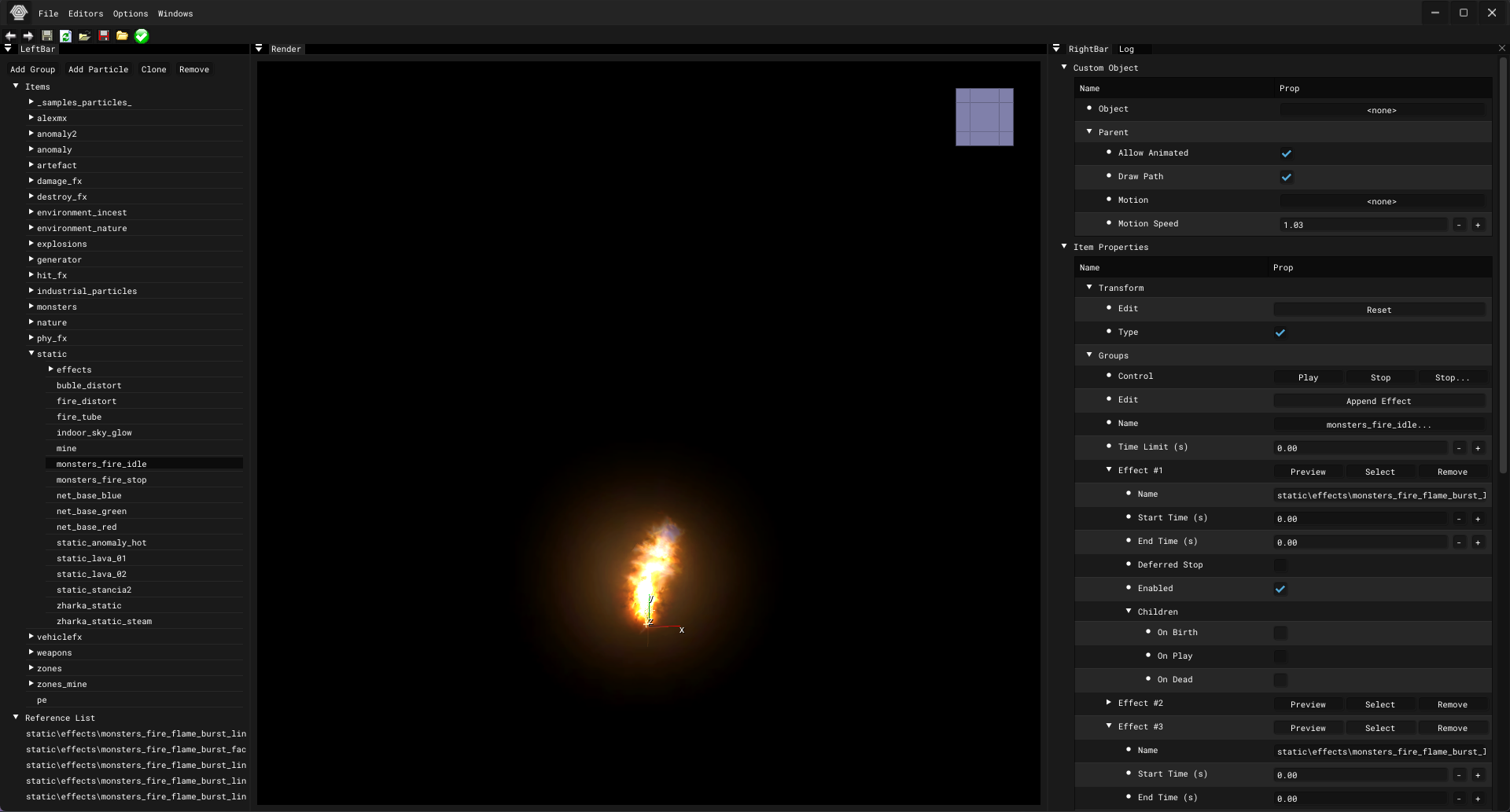

Interface
- File
- Editors
- Options
- Windows
| Button | Description |
|---|---|
| Save | Save the particles in unpacked form(*.pe,*.pg), in rawdata/particles |
| Reload | Reload particles from rawdata/particles |
| Save .xr | Save file .xr |
| Load .xr | Load file .xr |
| Validate | Validate particles |
| Compact | Checks database integrity, corrects paths to effects, and organizes storage structure |
| Option | 1 | Description |
|---|---|---|
| Image | Image Editor | Open Image Editor |
| Synchronize Textures | The function updates textures in the project by checking changes in the file system and synchronizing them | |
| Check New Textures | Searches for new textures in the file system and imports them | |
| Sounds | Sound Editor | Open Sound Editor |
| Synchronize Sounds (Soft) | Searches for new sounds in the file system and imports them. Deletes only those sounds that do not exist in the file system and are not used | |
| Synchronize Sounds (Hard) | Searches for new sounds in the file system and imports them. Deletes all sounds missing from the file system without checking if they are used | |
| Light Anim Editor | - | Open Light Animation Editor |
| Minimap Editor | - | Open Minimap Editor |
| Options | 1 | Description | 1 | Description |
|---|---|---|---|---|
| Render | Quality | - | - | |
| Fill Mode | Fill Mode | Point | Vertex point fill mode | |
| Wireframe | Wireframe fill mode | |||
| Solid | Solid fill mode | |||
| Shader Mode | Shader Mode | Flat | Flat Shading | |
| Gouraud | Gouraud Shading | |||
| Edged Faces | Enables drawing of edges (wireframe) of a 3D mesh | - | - | |
| RenderHW | Enables GPU rendering | - | - | |
| Filter Linear | Enables linear texture filtering | - | - | |
| Textures | Enables texture display (TODO Not Working) | - | - | |
| Draw Safe Rect | - | - | ||
| Draw Grid | Draw viewport grid | - | - | - |
| Coordinate Axes | None | None | - | - |
| Axis |  | - | - | |
| Cube |  | - | - | |
| Fog | - | - | - | |
| Mute Sounds | - | Mute Sounds | - | - |
| Real Time | - | Real Time | - | - |
| Stats | - | Displaying statistics | - | - |
| Preferences | - | Open Preference window | - | - |
| Button | Description |
|---|---|
| Log | Open Log window |
| Theme | Editor theme |
Top Bar
| Icon | Name | Description |
|---|---|---|
| Undo | Undo the last action | |
| Redo | Repeat the last action | |
| Save | Save the particles in unpacked form(*.pe,*.pg), in rawdata/particles | |
| Reload | Reload particles from rawdata/particles | |
| Open | Open file .xr | |
| Save | Save file .xr | |
| Open | Open folder Gamedata | |
| Validate | Particle Validation |
