Level Editor

---

About

Level Editor is used to create locations

---

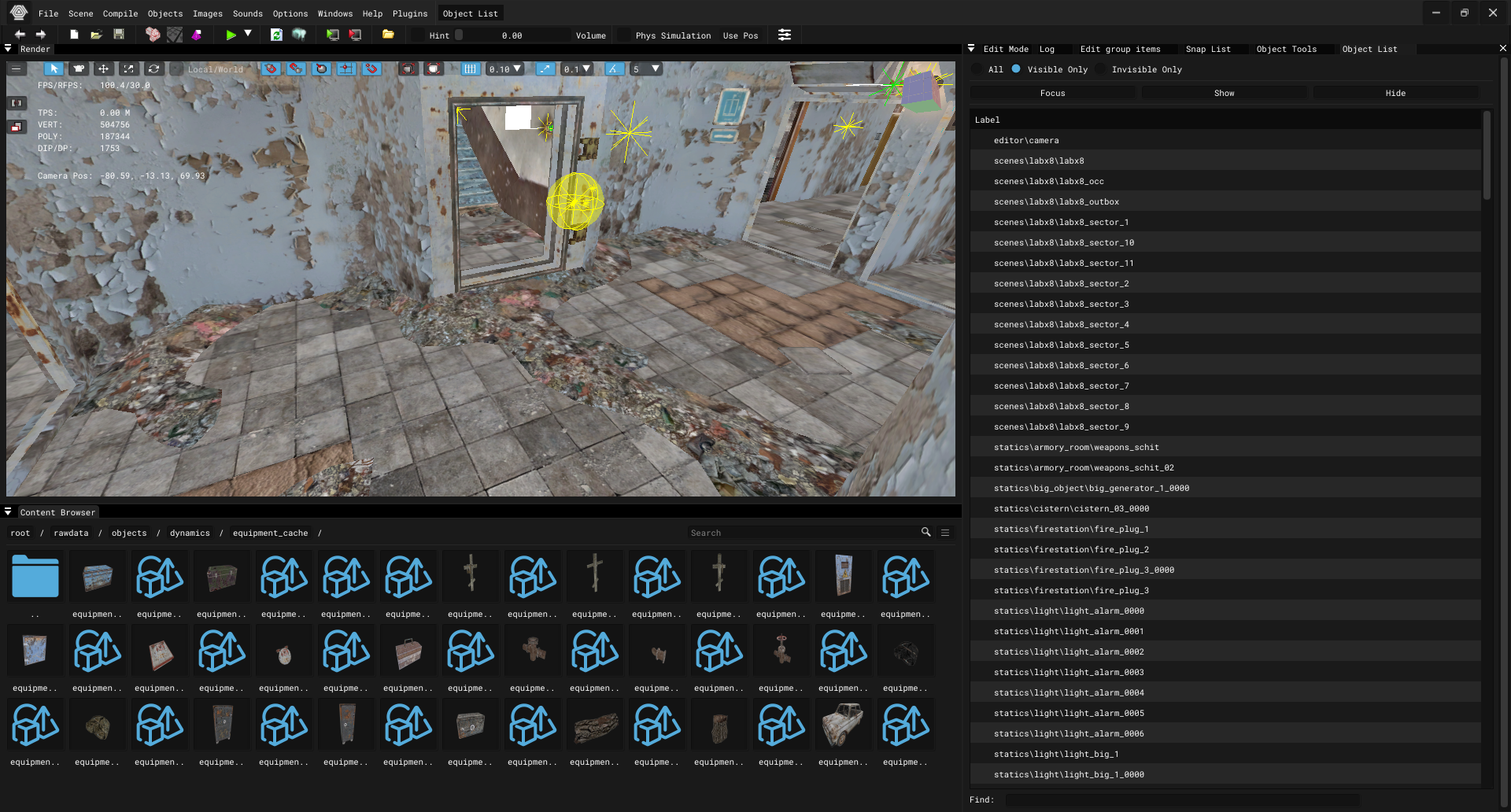

Interface

File

Button	Description	Note
Clear	Clear scene
Load	Load an object into a new scene
Save	Save object
Save as...	Save the object as	*.object *.lwo
Open Recent	Open recent
Import...	Imports the model into the scene
Optimize Motions	Goes through all the bones in the animation and optimizes their animation channels (e.g., position, rotation, scale) by removing redundant keyframes
Batch Convert...
Export	Export the model to formats	*.ogf *.omf *.obj *.dm C++
Quit	Exiting the program

Scene

Button	Description	Note
World Properties
Export as archive
Validate	Checks the level for errors
Summary info	Shows information about objects in the scene
Highlight Texture	Highlights the selected texture
Clear Debug Draw
Export entire Scene as Obj		*.object *.lwo *.txt *.xr *.wav *.obj *.ltx *.cpp
Export selection as Obj		*.object *.lwo *.txt *.xr *.wav *.obj *.ltx *.cpp

Compile

	Description	Extra	Extra Description	Extra	Extra Description
Make		Make All	Creates a *.prj precompilation file	-	-
		Make Game		-	-
		Make Puddles		-	-
		Make Details	Creates a *.details file	-	-
		Make HOM	Creates a *.hom file	-	-
		Make SOM	Creates a *.som file	-	-
		Make AI-Map	Creates a *.ai file	-	-
Compile		Geometry & Light		-	-
		Detail Object Light		-	-
		AI-Map		High
				Low
				Verify
		Spawn		Only Current Level
				All Levels
Import Error List	Import Error List	-	-	-	-
Import xrAI Error List		-	-	-	-
Export Error List	Export Error List	-	-	-	-
Clear Error List	Clear Error List	-	-	-	-

Objects

Button	Description
Library Editor
Multi Rename
Multi Replace
Reload	Reload Objects

Images

Button	Description
Image Editor	Open Image Editor
Reload Textures	Reload Textures
Synchronize Textures	Updates and synchronizes textures and their previews
Check New Textures	Check New Textures
Edit minimap
SyncTHM

Sounds

Button	Description
Sound Editor	Open Sound Editor
Synchronize Sounds (Soft)
Synchronize Sounds (Hard)
Refresh Environment Library
Refresh Environment Geometry

Options

Options	1	Description	1	Description
Render	Quality		-	-
	Fill Mode	Fill Mode	Point	Vertex point fill mode
			Wireframe	Wireframe fill mode
			Solid	Solid fill mode
	Shader Mode	Shader Mode	Flat	Flat Shading
			Gouraud	Gouraud Shading
	Edged Faces	Enables drawing of edges (wireframe) of a 3D mesh	-	-
	RenderHW	Enables GPU rendering	-	-
	Filter Linear	Enables linear texture filtering	-	-
	Textures	Enables texture display (TODO Not Working)	-	-
Draw Safe Rect			-	-
Draw Grid	Draw viewport grid	-	-	-
Coordinate Axes	None	None	-	-
	Axis		-	-
	Cube		-	-
Fog	-		-	-
Mute Sounds	-	Mute Sounds	-	-
Real Time	-	Real Time	-	-
Stats	-	Displaying statistics	-	-
Preferences	-	Open Preference window	-	-

Windows

Button	Description
Light Anim Editor	Open Light Animation Editor
Macro Editor	Open Macro Editor
Snap List	Open Snap List window
Objects Tools	Open Objects Tools window
Properties	Open Editors Properties window
Log	Open Log windows
Theme	Open Editor Theme settings

Help

Button	Description
Wiki
About...	Open About SDK Window

Plugins

Button	Description
Reinit	Reinitialize all plugins
Puddles Import	Extract compiled puddles to editor format
Restore Normal	Restore normal map from bump
Trees Paddins Generator (Directory to dds)	This script processes DDS textures, generates padding, and saves the result in DXT3 format
Trees Paddins Generator (Texture to dds)	This script processes DDS textures, generates padding, and saves the result in DXT3 format
Trees Paddins Generator (TGA)	This script precesses DDS textures, generates padding, and saves the result in TGA format

Top Bar

Icon	Name	Description
	Undo	Undo the last action
	Redo	Repeat the last action
	New Scene	Clear/New Scene
	Open Level	Open Level
	Save Level	Save Level
	Build CFORM	Build CFORM
	Build AI-Map	Build AI-Map
	Build Game Graph	Build Game Graph
	Start Play in Editor	Start Play in Editor
		Play in Editor Settings
		Reload Configs
		Build and Make
		Play Level
		Play Level in Game
		Open 'gamedata' folder
	Hint
	Volume
	Phys Simulation	Activates the physics simulation of the selected object(s)
	Use Pos	Use the position of the selected object when physics simulation is active. The position of the object will be applied when simulating physics
	Preference	Preference
