Right Bar
About

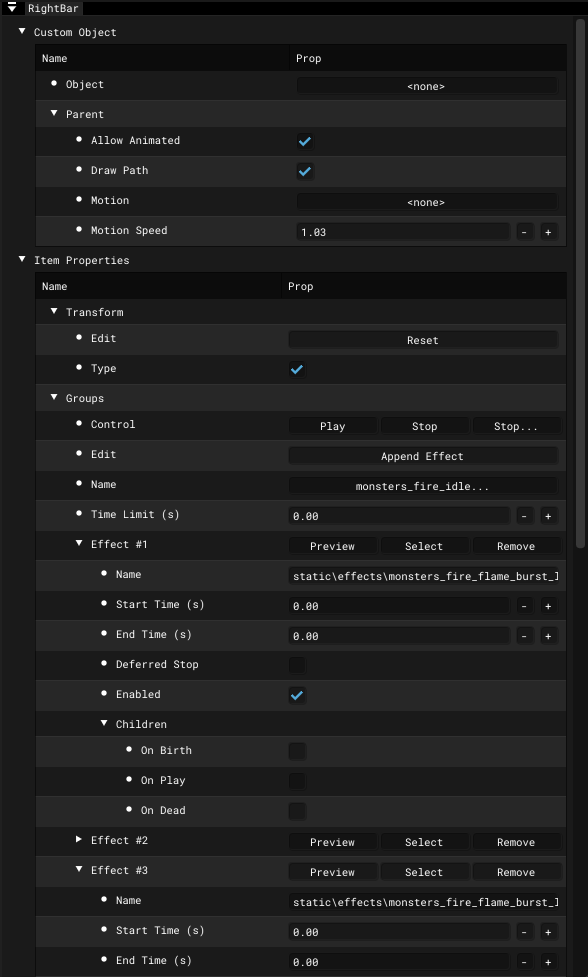

Window with settings and particle properties.
Interface
Custom Object
| Description | Extra | Extra Description | |
|---|---|---|---|
| Object | - | - | |
| Parent | Allow Animated | ||
| Draw Path | |||
| Motion | |||
| Motion Speed |
Item Properties
Different Properties are used for Particle Effect and Particle Group
- Particle Effect
- Particle Group
| Description | Extra | Extra Description | Extra | Extra Description | ||
|---|---|---|---|---|---|---|
| Transform | Edit | Reset | - | - | ||
| Type | - | - | - | - | ||
| Effects | Control | Play | Play | - | - | |
| Stop | Instant stop | - | - | |||
| Stop... | Deferred stop | - | - | |||
| Name | - | - | - | - | ||
| Time Limit | Value (sec) | - | - | |||
| Sprite | Texture | Selecting texture | - | - | ||
| Shader | Selecting Engine Shader | - | - | |||
| Culling | Enable Back-Face Culling | CCW | Enable Counter-Clockwise Culling | |||
| Frame | Random Init | |||||
| Count | ||||||
| Size U (0..1) | ||||||
| Size V (0..1) | ||||||
| Animated | Random Playback | |||||
| Speed | ||||||
| Movement | Align To Path | Face Align | ||||
| Default World Align | ||||||
| Default Rotate | ||||||
| Velocity Scale | Value | |||||
| Collision | Collide With Dynamic | Collide with Dynamic Objects | ||||
| Destroy On Contact | ||||||
| Friction | Friction | |||||
| Resilence | ||||||
| Cutoff | ||||||
| Actions | Edit | Avoid | ||||
| Bounce | ||||||
| Copy VertexB | ||||||
| Damping | ||||||
| Explosion | ||||||
| Follow | ||||||
| Gravitate | ||||||
| Gravity | ||||||
| Jet | ||||||
| Kill Old | ||||||
| Match Velocity | ||||||
| Move | ||||||
| Orbit Line | ||||||
| Orbit Point | ||||||
| Random Accel | ||||||
| Random Displace | ||||||
| Random Velocity | ||||||
| Restore | ||||||
| Scatter | ||||||
| Sink Velocity | ||||||
| Sink | ||||||
| Source | ||||||
| Speed Limit | ||||||
| Target Color | ||||||
| Target Size | ||||||
| Target Velocity | ||||||
| Turbulence | ||||||
| Vortex |
| Description | Extra | Extra Description | Extra | Extra Description | Extra | Extra Description | ||
|---|---|---|---|---|---|---|---|---|
| Transform | Edit | Reset | - | - | - | - | ||
| Type | - | - | - | - | - | - | ||
| Groups | Control | Play | Play | - | - | - | - | |
| Stop | Instant stop | - | - | - | - | |||
| Stop... | Deferred stop | - | - | - | - | |||
| Edit | Append Effect | Add Particle Effect | - | - | - | - | ||
| Name | - | - | - | - | ||||
| Time Limit (s) | - | - | - | - | ||||
| Effect | Preview | Preview Particle Effect | - | - | - | - | ||
| Select | - | - | - | - | ||||
| Remove | - | - | - | - | ||||
| Name | - | - | - | - | ||||
| Start Time | - | - | - | - | ||||
| End Time | - | - | - | - | ||||
| Deferred Stop | - | - | - | - | ||||
| Enabled | - | - | - | - | ||||
| Children | On Birth | Effect Name | ||||||
| On Play | Effect Name | |||||||
| Play After Stop | ||||||||
| On Dead | Effect Name |
